50 × 90 mm section · interior ceiling
| Section | 50 × 90 mm, supplied made to order to the run length |
|---|---|
| Install | Easy-install detail — the profile seats onto its fixing in one movement |
| Fixing | Needs the fixing the profile was designed for; a generic bracket loses the benefit |
| Why it pays | Repetition: the saving shows on a repeated ceiling, not on a single room |
| Use | Long runs and repeat layouts where installation time is the constraint |
| Standard | SGS tested. CE documentation supplied with EU-bound orders. |
| Maintenance | Wipe clean. No paint or oil finish required. |
The panel seats onto its fixing in one movement, with no separate alignment step
It needs the fixing the profile was designed for; a generic bracket loses the benefit
The time gain appears on a repeated ceiling, not on a single room
The heavier end of the 50 mm family

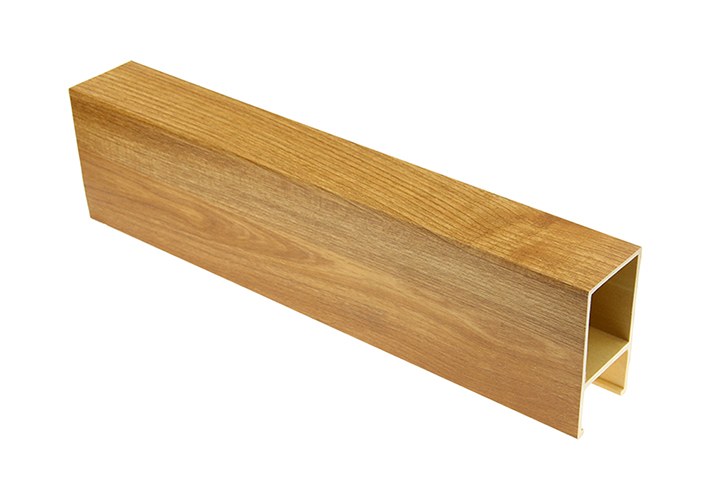

A hollow wood-plastic ceiling tube at 50 × 90 mm with an easy-install profile. The section is made to seat onto its fixing in one movement, so there is no separate alignment step and less adjusting at height.
On a single room that saves very little. The reason to specify this section is repetition: a hotel with the same ceiling detail across forty rooms, or a retail roll-out where the layout repeats, is where the reduction in site time per tube turns into a real number. The profile is finished on all four faces, fixes to a batten or direct, and gives the wide, heavy face of the 50 mm-deep family. One caution that comes with any installed-by-seating product: it needs the fixing it was designed for. Substituting a generic bracket loses the benefit and can leave the tube sitting proud, so the fixing should be confirmed with the order rather than sourced separately. It is an interior product — under a sheltered soffit it performs, but the compound is not formulated for UV the way the co-extruded cladding is.
Tell us the number of repeat ceilings and the fixing condition when you enquire, since both decide whether the easy-install detail is worth the section.
The same ceiling forty times is where the seat-on detail pays
A prototype ceiling repeated across sites on a tight programme
Many identical rooms, all on the same handover date
Repeated layouts where the labour hour is the constraint
1 × 20ft container, mixed across products where the mix suits the project. A sample box can be arranged before the first container.
Yes. Send the product and the size you are specifying, and we will confirm the sample and the lead time for it.
The profile seats onto its fixing in one movement, so there is no separate alignment step and less adjusting at height. On a single room that is a small gain; on a hotel with the same ceiling repeated forty times it is the reason to pick this section.
It needs the fixing the profile is designed for. Substituting a generic bracket loses the benefit and can leave the tube sitting proud, so confirm the fixing with us when you order.
It is easier than most, but a retrofit still depends on what is above. Send a photograph of the existing soffit and we will say what the fixing can be.
Only under a soffit that is sheltered. The tube is an interior product and the compound is not formulated for UV.
Final packing, freight and loading plan are confirmed in writing on the order quotation.
