4 mm and 5.5 mm rigid core · click-lock · IXPE pad
Click-lock SPC Flooring
- Thickness 4 mm and 5.5 mm rigid core
- Edge Click-lock — the plank joins to its neighbour and locks without adhesive
SPC-C17D57
Get a Quote

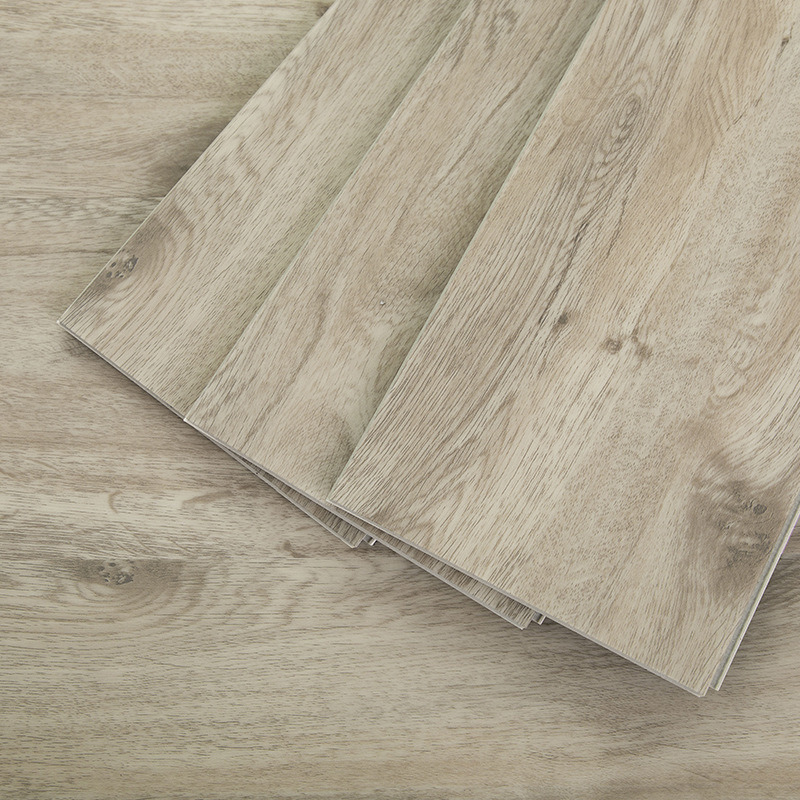

IXPE Padded SPC Flooring
SKU: SPC-157802
SGS tested
CE marked
ISO 9001
Specification
| Backing | IXPE foam factory-bonded to the plank — not a separate underlay |
|---|---|
| Acoustic | The bonded pad takes the hollow sound out of a floating floor |
| Thickness | Finished height includes the bonded pad — total confirmed at quotation |
| Edge | Click-lock, laid floating |
| Material | Rigid mineral core of PVC and calcium carbonate with stabilisers, IXPE backing |
| Installation | Floating. No separate underlay, no adhesive, no curing time |
| Standard | SGS tested. CE documentation supplied with EU-bound orders. |
What this product does
-
1
Bonded IXPE pad
The foam is factory-bonded, so there is no separate underlay to buy or lay
-
2
Quieter underfoot
The pad decouples the core from the subfloor, so the floor does not ring
-
3
Absorbs minor variation
Takes up small high spots that would otherwise work at the joint
-
4
Pad is in the height
The finished floor height includes the foam, so thresholds must be checked
Description
An SPC plank with an IXPE foam pad bonded to the back at the factory, rather than supplied as a separate underlay. The pad is part of the product, so there is nothing to roll out on site and nothing to get wrong.
It changes two things that buyers notice. The floor sounds less hollow underfoot, because the foam decouples the rigid core from the subfloor instead of letting it ring, and the pad absorbs minor subfloor variation that would otherwise telegraph through and work at the joint. That second effect is the practical one: on a real screed the difference between a bonded pad and no pad is usually the difference between a quiet floor and one that clicks at a high spot. It also means the finished floor height includes the pad, which has to be checked against thresholds and skirting before the order. Adding a second underlay on top is the one thing not to do — two soft layers make the click joint work against itself and it will open. Where there is a stated acoustic requirement, tell us the figure and we will say whether this assembly can meet it rather than implying that it will.
Confirm the total finished height and any acoustic requirement when you enquire, since both are decided by the pad rather than by the plank.
Where it is used
Apartments above occupied flats
Impact sound is the complaint, so the pad is doing the work
Hotel guest rooms above function space
A quieter floor over a room that has to stay quiet
Upper-floor residential refurbishment
Laid over an existing floor without adding a separate underlay
Home offices and studies
The room where a hollow floor is most noticed
Frequently asked
What is the minimum order?
1 × 20ft container, mixed across products where the mix suits the project. A sample box can be arranged before the first container.
Can I see a sample before ordering?
Yes. Send the product and the size you are specifying, and we will confirm the sample and the lead time for it.
What does the bonded IXPE pad actually change?
Two things: the floor sounds less hollow underfoot, and it takes up minor subfloor variation that would otherwise telegraph through to the joint. It also means there is no separate underlay to buy, roll out or get wrong.
Can I add my own underlay on top?
No. The pad is bonded to the plank, and a second underlay between two soft layers makes the click joint work against itself. The joint will eventually open.
Does the pad change the finished floor height?
Yes, it is part of the assembly, so the total height includes the pad. Check it against door thresholds and skirting before ordering.
Does it help with sound transmission to the flat below?
It improves impact sound over a bare floating floor, which is why it is specified in apartments. If there is a stated acoustic requirement, tell us the figure and we will say whether this assembly can meet it rather than implying that it will.
Trade terms
- MOQ
- 1 × 20ft container
- Lead time
- 15-25 days
- Payment terms
- T/T 30% deposit, balance before shipment
Final packing, freight and loading plan are confirmed in writing on the order quotation.
