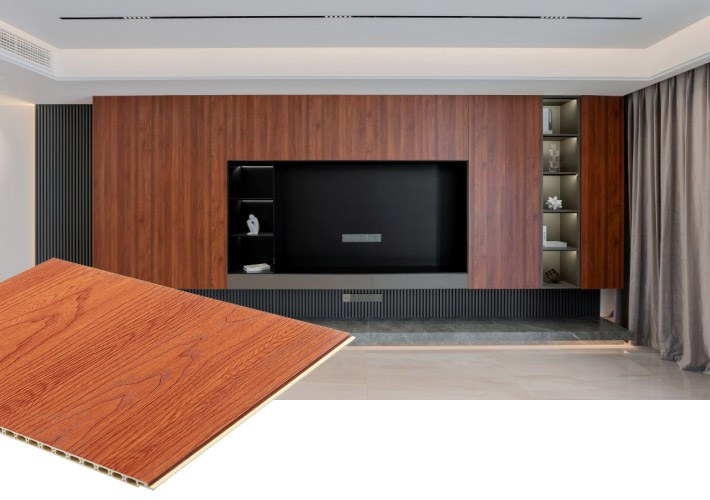

Extra-wide Slat WPC Wall Panel 410mm
410 × 9 mm section · interior wall
SKU: WPC-82ADCA
SGS tested
CE marked
ISO 9001
Specification
| Face width | 410 × 9 mm, the widest slat in the range, supplied made to order |
|---|---|
| Joint count | Roughly a quarter of the joints a 169 mm board gives on the same wall |
| Face span | 410 mm of face on a 9 mm section needs support close enough that the face cannot drum |
| Proportion | Large-format: suits double-height and industrial spaces, not domestic rooms |
| Use | Very large elevations where a narrow board would look fussy |
| Standard | SGS tested. CE documentation supplied with EU-bound orders. |
| Maintenance | Wipe clean. No paint or oil finish required. |
What this product does
-
1
Widest 410 mm face
Roughly a quarter of the joints a 169 mm board gives on the same wall
-
2
Face-to-thickness ratio
410 mm on a 9 mm section drums unless the support is close enough
-
3
Large-format read
The board sets the scale of the wall rather than decorating it
-
4
Fast coverage
Fewer joints means a large elevation closes quickly
Description
The widest slat in the range: a wood-plastic composite wall panel at 410 × 9 mm, with a shallow grooved face and an interlocking edge. The arithmetic of a wide face is the argument for it — on the same wall it gives roughly a quarter of the joints a 169 mm board gives, so there is far less set-out, far less joint alignment to get wrong, and a much quicker installation.
That makes it a large-format product. It suits double-height spaces, long elevations and industrial interiors, where a narrow board would read as fussy. In a domestic room it usually looks out of proportion unless the wall is genuinely tall, and it is worth sending an elevation before committing. The engineering caveat is the face-to-thickness ratio: 410 mm of face on a 9 mm section will drum if it is not supported closely enough, so fix direct to a flat substrate where possible, and keep battens tight where you cannot. A wide face also amplifies any error in the set-out at the ends, because there are fewer joints to absorb it.
Confirm the elevation, the board direction and the corner details when ordering, since all three are decided before the first batten is fixed.
Where it is used
Atrium and void elevations
Walls seen from two floors away, where a narrow board loses the scale
Industrial and studio interiors
Big volumes that need a board with the weight of the structure
Retail flagship walls
A single broad rhythm behind a display, at a scale the merchandise does not fight
Exhibition and event halls
Large temporary elevations that close fast and read from a distance
Frequently asked
What is the minimum order?
1 × 20ft container, mixed across products where the mix suits the project. A sample box can be arranged before the first container.
Can I see a sample before ordering?
Yes. Send the product and the size you are specifying, and we will confirm the sample and the lead time for it.
Is 410 mm too wide for a normal room?
It is a large-format board, so it suits double-height spaces, long elevations and industrial interiors. In a domestic room it usually looks out of proportion unless the wall is genuinely tall. Send us the elevation and we will say what we think rather than just quoting.
How do you stop a 410 mm face from drumming?
Support close enough that the face cannot move between fixings, and fix direct to a flat substrate where you can. A wide thin face on widely spaced battens will sound hollow and will eventually show a witness line.
What does it do to the joint count?
On the same wall it gives roughly a quarter of the joints a 169 mm board gives, which is the reason to use it: less set-out, less joint, fewer places to get the alignment wrong.
Can it be used vertically and horizontally?
Yes, the profile works either way, but running a 410 mm board horizontally changes the visual weight of the wall considerably. Decide the direction before the battens go on.
Trade terms
- MOQ
- 1 × 20ft container
- Lead time
- 15-25 days
- Payment terms
- T/T 30% deposit, balance before shipment
Final packing, freight and loading plan are confirmed in writing on the order quotation.
