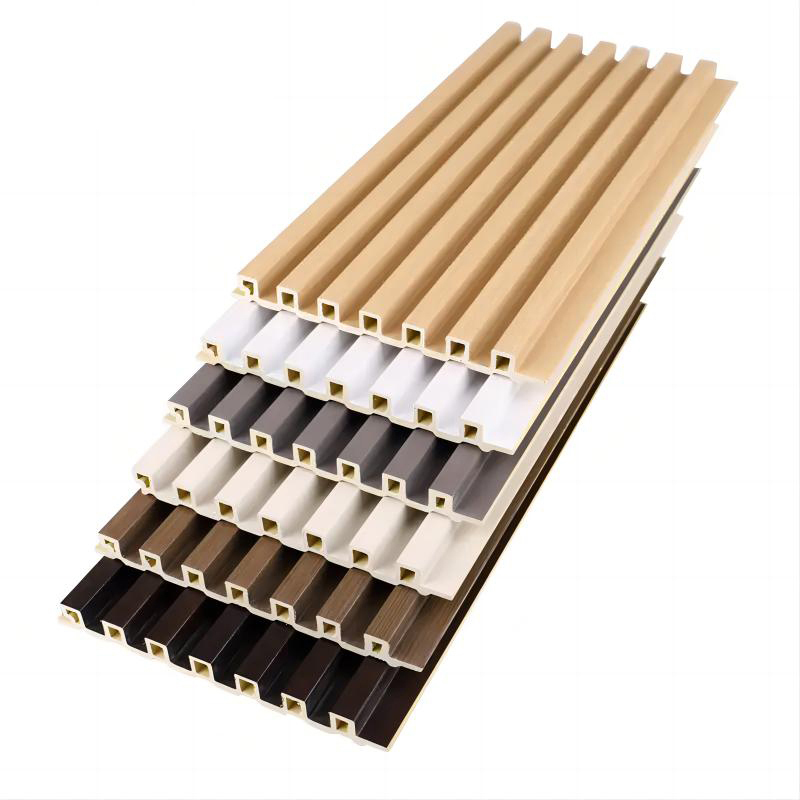

3D Fluted WPC Wall Panel — product photograph

WPC Wall Panel

3D Fluted WPC Wall Panel

169x24mm

SKU: WPC-15ED72 SGS tested CE marked ISO 9001
Request a Quote Request a Sample Download Spec Sheet

Specification

Specification for 3D Fluted WPC Wall Panel
Section 169 × 24 mm, supplied made to order to the wall length
Fluting Three-dimensional relief cut into the face to the full section depth — not a printed line
Standoff The flute stands proud of the joint line, so the wall finishes at the depth of the relief
Set-out Work from a centre line: the relief draws the eye to the ends, so an off-centre run shows
Use Interior feature walls, reception backdrops, headboard walls
Standard SGS tested. CE documentation supplied with EU-bound orders.
Maintenance Wipe clean. No paint or oil finish required.

What this product does

  1. 1
    Fluted face

    Three-dimensional relief cut to the section depth, not a printed line

  2. 2
    Open channels

    The flutes are open, so dust sits on the high points and wipes out

  3. 3
    Centre set-out

    The relief draws the eye to the ends, so the run is centred rather than edged

  4. 4
    Rigid over long runs

    Extruded hollow, so it stays straight without a solid backing behind it

Description

This is a hollow wood-plastic composite wall panel with a three-dimensional flute cut into its face. The section is 169 × 24 mm, and the same profile family is also produced at 154 × 17 mm and 168 × 22 mm. The relief is a genuine profile in the extrusion rather than a printed line, which is what separates it from a flat panel with a decorative film.

It goes on interior feature walls where the surface itself is the design: reception backdrops, headboard walls, restaurant partitions. The flute carries the eye along the wall, so it suits a long elevation better than a small return. Panels fix to battens or a flat substrate and the joint closes into the profile, so no fixing shows after installation. Because the fluting stands proud of the joint, the finished wall sits at the depth of the relief and the decoration stops at the skirting line. It is not an exterior product: a facade needs the co-extruded section, where a separate skin carries the colour.

Before ordering, confirm the wall length so the set-out can start from a centre line, and confirm whether the elevation has to meet a different surface at either end. Both decide whether a shadow gap or a trim closes the wall.

Where it is used

Hotel reception backdrops

The relief reads as a designed wall behind the desk, where a flat panel would look painted

Restaurant booth walls

The fluting takes part of the clatter between tables and hides the joint behind the banquette

Bedroom headboard walls

The channels run vertically behind the bed and give the room a headboard without upholstery

Retail window reveals

A shallow relief catches shop lighting and pulls the eye into the display from the street

See all application guides

Frequently asked

What is the minimum order?

1 × 20ft container, mixed across products where the mix suits the project. A sample box can be arranged before the first container.

Can I see a sample before ordering?

Yes. Send the product and the size you are specifying, and we will confirm the sample and the lead time for it.

How deep is the fluting, and does it collect dust?

The relief is cut into the face to the depth of the section, so the grooves are open channels. On a vertical wall dust settles on the high points and the channels wipe out with a cloth; the detail that traps dust is a narrow closed groove, not an open flute.

Can a fluted panel go on a ceiling?

Yes, but the fixing pattern changes. On a wall the panel hangs from the groove; overhead it needs a batten at every joint plus mechanical fixing, otherwise the relief works against the clip.

Does the relief reduce the usable wall area?

The panel finishes at the depth of the flute, so a 169 mm board covers slightly less than its face width once the joint is closed. Set out from the centre of the elevation and work to the corners rather than the other way round.

Can I butt fluted panels against plain WPC in the same room?

Yes, and it reads better with a shadow gap than a flush butt, because the two faces sit at different depths. Choose the transition before tiling or skirting is set out.

Trade terms

MOQ
1 × 20ft container
Lead time
15-25 days
Payment terms
T/T 30% deposit, balance before shipment

Final packing, freight and loading plan are confirmed in writing on the order quotation.
