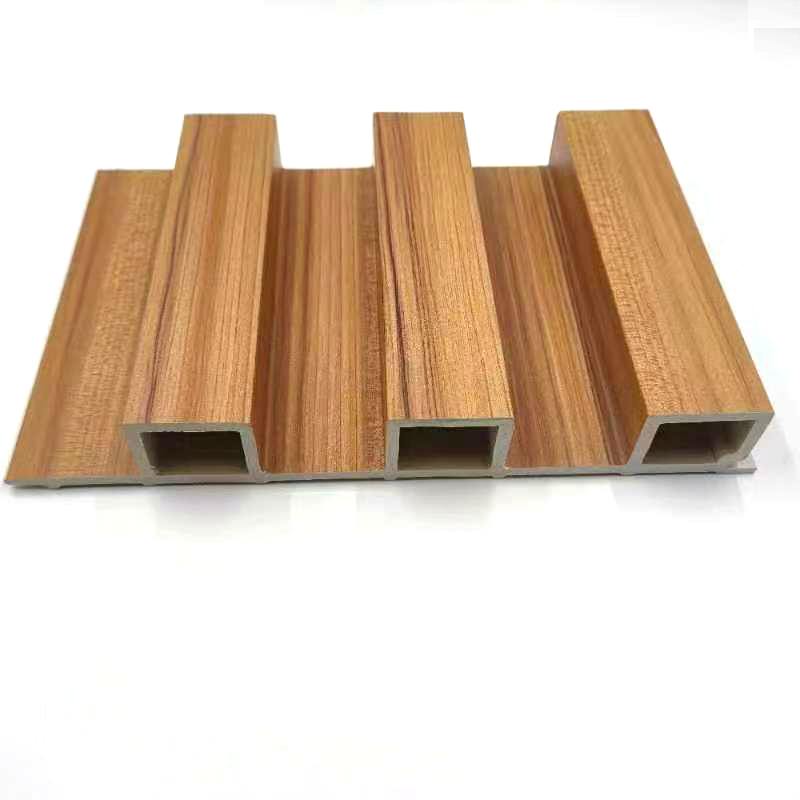

Co-extruded WPC Wall Panel — product photograph

WPC Wall Panel

Co-extruded WPC Wall Panel

169x24mm

SKU: WPC-B754FF SGS tested CE marked ISO 9001
Request a Quote Request a Sample Download Spec Sheet

Specification

Specification for Co-extruded WPC Wall Panel
Section 169 × 24 mm, co-extruded, supplied made to order to the wall length
Skin A separate outer layer bonded during extrusion, not laminated on afterwards
Colour Pigment sits in the skin, so a scuff does not expose a different material
Repair A scratch through the skin cannot be blended invisibly — plan for one panel to come out
Limit Interior wear skin. A facade needs the UV-stabilised version, not this one
Standard SGS tested. CE documentation supplied with EU-bound orders.
Maintenance Wipe clean. No paint or oil finish required.

What this product does

  1. 1
    Co-extruded skin

    The outer layer bonds during extrusion, so it is part of the panel and not a film

  2. 2
    Pigment in the wear layer

    Colour sits in the skin, so a scuff does not expose a different material

  3. 3
    Batch colour hold

    Skin and core leave the die together, so a long run does not shift shade mid-wall

  4. 4
    Replaceable panel

    One panel can come out of the run, which is what a scratched face needs

Description

A wood-plastic composite wall panel, 169 × 24 mm, where a separate outer skin is co-extruded over the core instead of being laminated onto it afterwards. Two materials leave the die at the same time and bond while both are still molten, so the skin becomes part of the panel. The same section family is produced at 154 × 17 mm and 168 × 22 mm.

The point of the skin is that it carries both the pigment and the wear surface. Colour therefore sits in a layer that can take a scuff without exposing a different material underneath, and it stays consistent along a run because skin and core leave the die together. That matters on a long corridor where a colour shift between pallets would be obvious. Panels fix to battens or a flat substrate with the joint closing into the profile, so no fixing shows. It is an interior product: the exterior version uses a UV-stabilised cap, and using the interior panel on a facade is the one substitution that genuinely fails.

Order by the finished wall area and confirm the section at the same time, since the three sizes in the family do not cover the same face width. Request a sample of the actual colour before the run is fixed.

Where it is used

Hotel corridor runs

Long runs are where a shade shift between pallets would show, so batch colour hold matters

Lift lobbies

Surfaces take luggage and trolley contact, and the skin carries colour through a scuff

Office reception walls

Cleaned daily and knocked regularly, so the wear layer is what is being bought

Clinic waiting areas

A wipe-clean face that holds colour through repeated disinfectant cleaning

See all application guides

Frequently asked

What is the minimum order?

1 × 20ft container, mixed across products where the mix suits the project. A sample box can be arranged before the first container.

Can I see a sample before ordering?

Yes. Send the product and the size you are specifying, and we will confirm the sample and the lead time for it.

What is actually co-extruded?

Two materials leave the die together: a core of wood-plastic composite and a thin outer skin. The skin is bonded while both are still molten, so it becomes part of the panel rather than a film stuck to it. That is why the colour sits in a layer that can take a scuff without exposing a different material underneath.

How is this different from the exterior co-extruded panel?

Same construction idea, different skin. The exterior version uses a UV-stabilised cap formulated for sunlight and weather; this one is formulated for interior wear. Putting the interior panel outside is the one substitution that fails, because the skin is not built for UV.

Can a scratched co-extruded panel be repaired?

A light scuff usually cleans off. A deep scratch that goes through the skin cannot be blended invisibly, so the panel is replaced — which is why the panels are installed so one can come out without disturbing the run.

Does co-extrusion change how it cuts?

It cuts like the standard panel with a fine-tooth blade. Cut with the decorative face up and cap the exposed end, because the cut edge shows the core.

Trade terms

MOQ
1 × 20ft container
Lead time
15-25 days
Payment terms
T/T 30% deposit, balance before shipment

Final packing, freight and loading plan are confirmed in writing on the order quotation.
