Wave Wood-grain WPC Wall Panel 209mm
209 × 15 mm section · interior wall
SKU: WPC-FB4675
SGS tested
CE marked
ISO 9001
Specification
| Face width | 209 × 15 mm, supplied made to order to the wall length |
|---|---|
| Pattern | Wave wood-grain — the grain follows the wave rather than running straight |
| Viewing | Reads at an angle; viewed straight on, the movement can flatten and a plain grain would do |
| Set-out | Keep the wave continuous across joints — a break at a doorway shows the interruption |
| Use | Interior feature walls where a timber look with movement is wanted |
| Standard | SGS tested. CE documentation supplied with EU-bound orders. |
| Maintenance | Wipe clean. No paint or oil finish required. |
What this product does
-
1
Wave-following grain
The grain follows the wave, so the figure moves as the light moves
-
2
Angle-dependent figure
Reads at an angle and flattens straight on, which decides where it is used
-
3
Continuous pattern
The wave has to run across joints, so a break at a doorway shows
-
4
Mid-depth 15 mm section
A shadow line without a deep reveal
Description

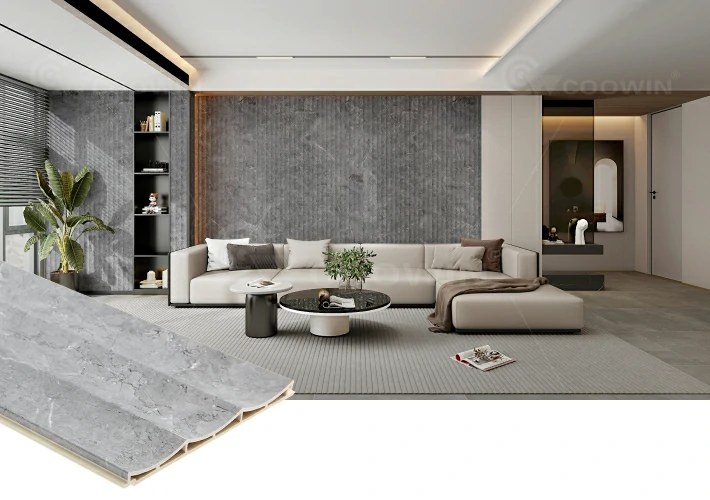

A wood-plastic composite wall panel at 209 × 15 mm with a wave wood-grain pattern. The wave is in the surface treatment and the grain follows it, so the figure shifts as light moves across the wall rather than running straight like a conventional wood print.
It is a feature-wall product rather than a bulk cladding. The movement reads best on a surface seen at an angle — a corridor, a stair, a reception backdrop — because that is where the light changes across the wave. Straight on, the pattern can flatten and a plainer grain would do the same job for less money. The caution is the joint: a pattern that moves draws the eye to any break in its rhythm, so set out from a centre line and keep the wave continuous across the joints. A run that starts and stops at a doorway shows the interruption. The 15 mm section gives a mid-range standoff and a shadow line at the joint with no visible fixings. On a curved wall the section will only take a generous radius, so the radius has to be confirmed before the order rather than after.
Send the elevation and the viewing direction when you enquire, and take a sample of the actual wave before the run is fixed, because this is a finish where a photograph and a panel do not read the same.
Where it is used
Stair walls
Seen from below and along, which is the angle the wave needs
Corridor feature runs
Movement under changing light down a long walk
Reception backdrops
A wall looked at from an angle while people wait
Hotel bedroom feature walls
A timber look with movement, without veneer's build-up and edging
Frequently asked
What is the minimum order?
1 × 20ft container, mixed across products where the mix suits the project. A sample box can be arranged before the first container.
Can I see a sample before ordering?
Yes. Send the product and the size you are specifying, and we will confirm the sample and the lead time for it.
Is the wave a printed pattern or a profile?
The wave is in the surface treatment and the grain follows it, so the effect changes as the light moves across the wall. It is not a straight grain printed at an angle.
Does the wave make the joints harder to line up?
Slightly, because a pattern that moves draws the eye to any break in the rhythm. Set out from a centre line and keep the wave continuous across joints; a run that starts and stops at a door will show the break.
Where does a wave grain work best?
On a wall seen at an angle — a corridor, a stair, a reception backdrop. Straight on, the movement can be lost and a plainer grain would do the same job for less.
Can it be used on a curved wall?
Only with a generous radius and a batten layout that follows the curve, because a 15 mm hollow section does not bend tightly. Send the radius and we will say whether it is achievable.
Trade terms
- MOQ
- 1 × 20ft container
- Lead time
- 15-25 days
- Payment terms
- T/T 30% deposit, balance before shipment
Final packing, freight and loading plan are confirmed in writing on the order quotation.
