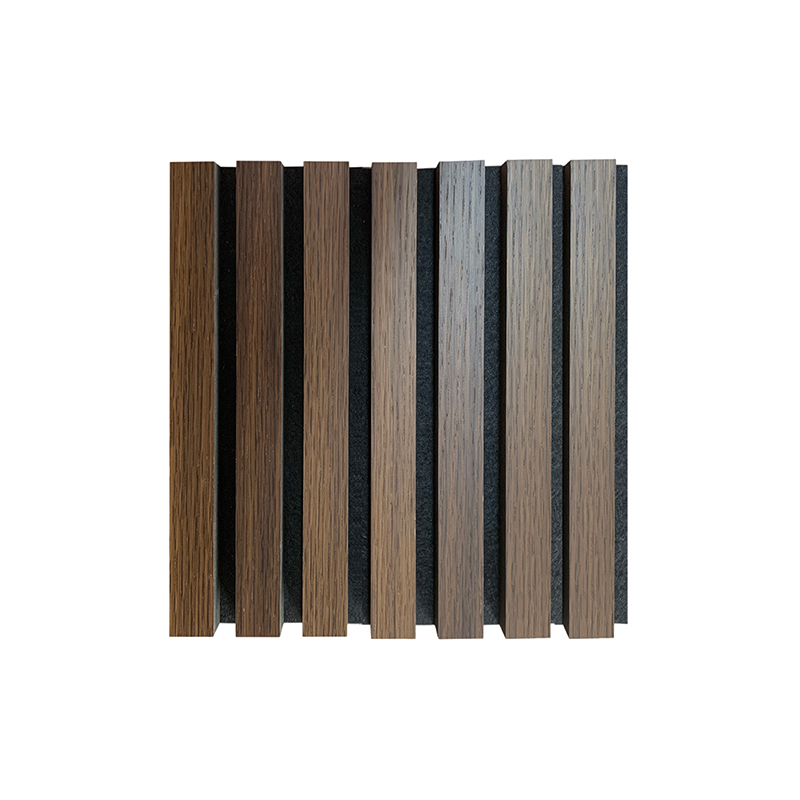

Wooden Slat Acoustic Panel — product photograph

Acoustic Panel

Wooden Slat Acoustic Panel

SKU: ACO-E2283D SGS tested CE marked ISO 9001
Request a Quote Request a Sample Download Spec Sheet

Specification

Specification for Wooden Slat Acoustic Panel
Construction Timber slats bonded over a black acoustic felt backing, supplied as one assembly
Fixing Screwed through the felt at a slat into the substrate — no frame needed
Slat spacing The gap between slats is part of the absorber, so two spacings do not perform alike
Thickness 9 / 12 / 15 / 18 / 20 / 25 mm backing assembly; the slat face adds to finished depth
Format 1220 × 2440 mm panel, or 600 × 600 and 600 × 1200 modules
Edge A cut exposes the felt core, so every visible edge needs a trim
Standard ASTM C423 for sound absorption. Ask for the report for the grade you specify.

What this product does

  1. 1
    Slat over felt

    Timber slats bonded over black acoustic felt, supplied as one assembly

  2. 2
    Direct screw fixing

    Screwed through the felt at a slat, so there is no frame to build

  3. 3
    Slat spacing tunes it

    The gap between slats is part of the absorber, so two spacings do not perform alike

  4. 4
    Felt shows at cuts

    A cut edge exposes the felt core, so every visible edge takes a trim

Description

An acoustic panel built as a complete assembly: timber slats set over a black acoustic felt backing, supplied as one piece and screwed straight to the wall or ceiling. There is no separate frame to build.

It is the acoustic panel for interiors where the finish has to look like timber rather than like a technical absorber — boardrooms, reception areas, restaurants, home cinemas — and the slat face does that job while the felt behind it absorbs. The gaps between the slats are functional: sound passes between them and is taken by the felt, which is why the panel is tuned by its slat spacing and two spacings do not perform identically. Because it is a bonded assembly, the screw goes through the felt at a slat into the substrate, so it can go overhead as well as on a wall without a frame, which is unusual among acoustic products. Cutting it exposes the felt core, so the edge needs a trim, and that detail is worth deciding before the set-out rather than after the last panel is up.

Confirm the room, the absorption target and the slat spacing when you enquire, and check whether the substrate will take a direct screw fixing overhead.

Where it is used

Boardrooms and executive floors

The room where the wall has to look like timber, not like an absorber

Restaurant dining rooms

A timber face that also brings the noise floor down at dinner

Home cinemas and media rooms

Slat rhythm behind the screen wall, with the felt doing the absorption

Hotel bars and lounges

A timber look on a wall that gets photographed and leaned on

See all application guides

Frequently asked

What is the minimum order?

1 × 20ft container, mixed across products where the mix suits the project. A sample box can be arranged before the first container.

Can I see a sample before ordering?

Yes. Send the product and the size you are specifying, and we will confirm the sample and the lead time for it.

How does it fix without a frame?

The panel is a complete assembly: slats bonded to the felt backing, and the screw goes through the felt at a slat position into the wall or ceiling. There is no batten frame to build, which is why it goes up quickly.

Does the slat gap affect the absorption?

Yes, the gaps are part of how it absorbs — sound passes between the slats and is taken by the felt. That also means the panel is tuned by its slat spacing, so different spacings do not perform identically.

Can it be used on a ceiling?

Yes, screwed directly, provided the substrate takes the fixing. It is one of the few acoustic panels that installs overhead without a separate frame.

What happens at a corner or a cut edge?

Cut with a fine blade and finish the edge with a trim, because the felt core is visible on a cut. Plan the edge detail before setting out.

Trade terms

MOQ
1 × 20ft container
Lead time
15-25 days
Payment terms
T/T 30% deposit, balance before shipment

Final packing, freight and loading plan are confirmed in writing on the order quotation.
